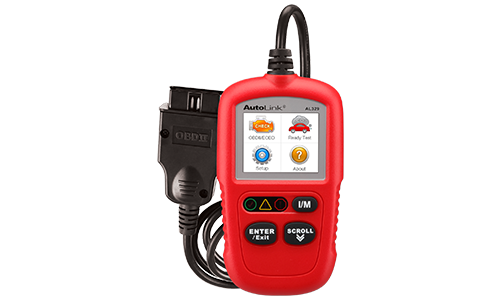

AutoLink AL329

AutoLink AL329, with its patented One-Click I/M Readiness Key, enables user to check State Emission Monitor Status and verify repairs. Read and Erase codes on European, American and Asian vehicles, 1996 and newer.

Category:

Description

  • Compatible with European, American and Asian vehicles, 1996 and newer
  • Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes

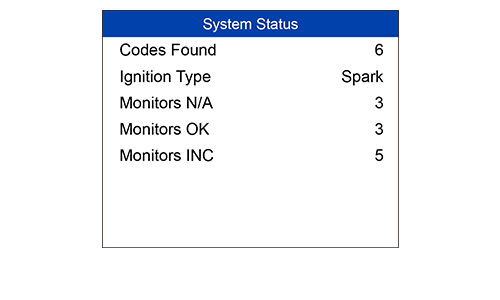

  • Reads and displays I/M monitor (Emissions) status

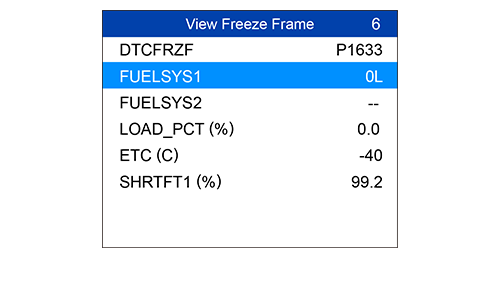

  • Views Freeze Frame Data

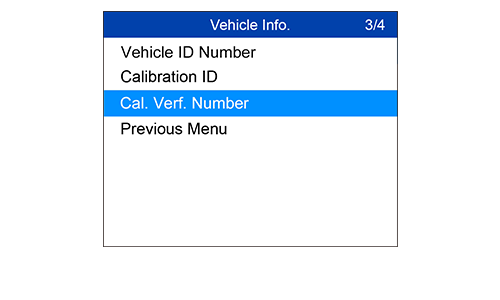

  • Retrieves vehicle identification information (VIN, CALID and CVN)

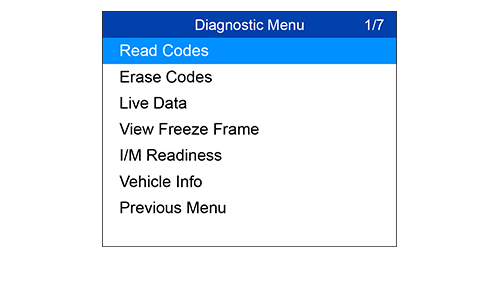

  • Clears codes, resets monitors and turns off malfunction indicator light (MIL)
  • Easy plug-in and scan operation

Specifications

Display TFT color display (220×176 dpi)
Connectivity USB mini 2.0 OBD II DB16
Operating Temp. 0 to 60 ℃ (32 to 140 ℉)
Storage Temp. -20 to 70 ℃ (-4 to 158 ℉)
Power 8.0 to 18.0 V provided via the vehicle battery
Dimensions (LxWxH) 120.9 mm (4.76”) x 68.4 mm (2.69”) x 18 mm (0.71”)
Weight 155.2 g (0.342 lb.)



Accessories

  • User Manual
  • Quick guide
  • USB Cable

Comparison

Functions AL329 AL529 AL529HD AL539b AL629
One Touch I/M Readiness Check
Read MIL Status
View Freeze Frame Data
View Live Data
Read/Erase DTCs
View Vehicle Information
AutoVIN for Quick DTC definition
O2 Monitor test
On-board Monitor test
Component Test
Modules Present
Support J1939 and J1708 Protocols
Read/Erase DTCs for ABS, SRS, Engine & Transmission
Read Enhanced Codes in Powertrain system for Ford, GM and Chrysler
AC/DC Voltage Test, Resistance Test, Diode Voltage Test, Current Test (0~20A, 0~200mA), Starter Test, Charging System Test, Battery Test
Save and Playback Data
DTCs Help
Print Data Via Windows-baded PC
Vehicle Coverage Vehicles compatible
with OBD protocols
Vehicles compatible
with OBD protocols
Vehicles compatible with OBD protocols and J1939, J1708 protocols Vehicles compatible
with OBD protocols
US: GM, Ford, Lincoln, Chrysler, Dodge;
European: Mercedes, Smart, BMW, Mini, VW, Audi, Land Rover, Jaguar, Volvo, Peugeot, Citroen, Fiat, Alfa Romeo, Abarth, Lancia, Porsche, Bugatti, Skoda, Seat, Bentley, Renault, Dacia, Opel, Saab;
Asian: Toyota, Lexus, Scion, Honda, Acura,
Nissan, Infiniti, Hyundai, KIA, Mazda, Suzuki, Subaru, etc.

video

Downloads

AL329 Quick Guide V1.00.pdf

AL329 User Manual V1.00.pdf
