MaxiVideo MV500

MaxiVideo MV500

MaxiVideo MV500 is Autel’s most advanced digital inspection camera to date. Its revolutionary tablet design supports wireless image transmission of up to 30 meters between the MaxiVideo MV500 display tablet and inspection scope. Along with its dual-camera cable, MaxiVideo MV500 gives technicians the freedom to work either individually or collaboratively during inspection to produce best results.

Category:

Description

  • Extraordinarily powerful Cortex-A9 quad-core processor
  • 5-inch LCD capacitive touchscreen with 1280×720 resolution
  • Internal reliable and fast 16GB Solid State Drive for better performance
  • Unique shop tough ergonomic design features strong rubber protection and housing
  • Views images in real time
  • Ideal applications: water restoration, HVAC and refrigeration, electrical inspection, automotive, pest control
  • Mini USB connector for uploading images and videos to a computer
  • White LED to illuminate the inspection area, with illumination control
  • Supports wireless image transmission of up to 30 meters between the display tablet and inspection scope
  • One-year limited warranty

Specifications

Recommended Use Indoor
Operating System AndroidTM 4.4.2, KitKat
Processor Tablet:RockChip RK3188 Cortex-A9 quad-core processor (1.6 GHz)
Handle:Grain GM8287 processor (792 MHz ARM-based 32-bit RISC)
Memory Tablet:1GB RAM DDR3 & 16GB ROM
Handle:256MB RAM & 16MB ROM
Display Tablet:5-inch LCD capacitive touchscreen with 1280×720 resolution
Dimensions Tablet:195.2 x 115.6 x 32.4 mm (7.7″x 4.6″x 1.3″)
Handle:180.2 x 73.8 x 33.6 mm (7.1″x 2.9″x 1.3″)
Connectivity Tablet:Mini USB 2.0, HDMI Type A, SD card (supports up to 32GB)
Wi-Fi 802.11 b/g/n
Camera Tablet:Rear-facing, 5-megapixel
Sensor Tablet:Gravity accelerometer
Audio Input/Output Tablet:Microphone, Single speaker
Power and Battery Tablet:3.7 V/3200 mAh lithium-polymer battery Charges via 5 VDC power supply
Handle:Built-in rechargeable lithium-ion battery pack (3.7 V/2600 mAh)
Tested Battery Life Tablet:Around 3.5 hours of continuous use
Handle:Around 2.8 hours of continuous use
Battery Charging Input 5V/3A
Power Consumption 3W
Operating Temp. Tablet:0°C to 50°C ( 32°F to 122°F)
Handle & cable: 0°C to 60°C (32°F to 140°F)
Storage Temp. -20°C to 70°C (-4°F to 158°F)
Operating Humidity 5% – 95% non-condensing
Housing Tablet:Strong plastic housing with protective rubber boot
Net Weight Tablet:463 g (1.02 lb.)
Handle:290 g (0.64 lb.)
Optimal Viewing Distance Handle:2.5 cm to 35.6 cm (1” to 14”)
Image Capture Handle:JPG images (1280 x 720) H.264 videos (1280 x 720)
Image Controls Handle:Zoom, low light vision
Lighting Handle:Fully adjustable LED light 40 Lm (flashlight)
Cable Reach Handle:1 m (39.4″)
Imager Heads Handle:8.5 mm (0.33″), about 1.0 megapixel (1280 x 720)
Waterproof Handle:To a depth of 1.6 m (63″) (imager heads and cable)
Additional Port Handle:Mini USB – 10 Pin

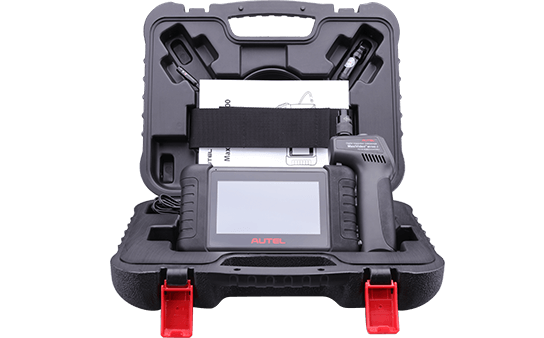

Accessories

  • HDMI Cable
  • Imager Heads and Cable (8.5 mm)
  • Protective carrying case
  • Magnet and Hook
  • User Manual
  • Mini USB Cable

Comparison

MV105/108 MV208 MV400 MV460 MV480 MV500
High resolution and full color digital LCD display 2.4-Inch (320X240px) 2.4-Inch (320X240px) 3.5-Inch (640X480px) 3.5-Inch (640X480px) 4.1-Inch (1200X720px) 5-Inch (1280×720)
Record and Playback Images & Video Clips 320X240px 640×480px 1920 x 1080px 1920 x 1080px 1280×720px
Audio Annotation with MIC & Speaker
for detailed review		 √
Bright LED Flashlight √
Direction of View 0° (Front only) 0°+90° (Front & Side)
Freeze-Frame Camera Stills or Video Recording √ √
Wider 70° Field of View √ √
More than 10,000 LUX bright 10-Level adjustable LED √ √
Magnet & Hook Included √ + Mirror √
Compatible with 5.5MM (0.22”) Single Camera Head √ √
Single button for quick photo and video recording √ √
On-screen Horizontal / Vertical Reverse √ √ √ √
Dual cameras see straight ahead or at a 90° angle √ √
Add audio annotation for detail presentation √ √
Touchscreen for convenient operation √
On-screen photo editing and markup √
Wireless monitor enables remote viewing √
On-screen 90° clockwise rotation √ √ √
HDMI port for monitor view √ √ √
Built-in & adjustable LED illuminates viewing area √ √ √ √
BOn-screen horizontal/vertical reverse √ √ √ √
View objects as close as 1″ √ √ √ √ √
Mini USB connector for uploading images and videos √ √ √ √ √
1 m long semi-rigid flexible watertight shaft √ √ √ √ √
Digital zoom for detailed viewing 5× 5× 7× 7× 5×
Narrow probe diameter available in both 5.5 mm and 8.5 mm √ √ 8.5mm (5.5mm Optional) 8.5mm (5.5mm Optional) 8.5mm
Micro SD card slot for greater memory capacity √ √ √ √ √
Oil and scratch resistant tempered glass lens √ √ √ √ √
Ergonomic and durable tool housing √ √ √ √ √
Built-in rechargeable Li-ion battery √ √ √ v
Multilingual support √ √ √ √
Water Resistant Camera head √ √ √ √

Video

Downloads

MaxiVideo MV500 User Manual V1.20.pdf
