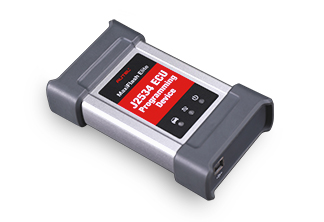

MaxiFlash Elite

As a multi-protocol Pass-Thru vehicle interface, MaxiFlash Elite is a fully compliant SAE J2534-1 & SAE J2534-2 (March 2006) device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance and flexibility.

Category:

Description

  • Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards
  • Performs the standard PassThru J2534 functionality
  • Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics
  • Fast performance ensures quickly reprogramming even the newest controllers
  • Wireless with advanced networking functions
  • Built-in wireless and data storage
  • Rugged design capable of withstanding harsh environments
  • Internet updateable

Specifications

Communications Wireless BT V2.1 + EDR,USB 2.0
Wireless Frequency Wireless BT V2.1+EDR, 2.4GHz
Input Voltage Range 12VDC to 24VDC
Supply Current 170mA @ 12VDC 100mA @ 24VDC
Operating Temperature 0°C to +60°C (ambient)
Storage Temperature -65°C to +100°C (ambient)
Dimensions (W x H x D) Length: 149 mm (5.87″) Width: 86mm (3.38″) Height: 35 mm (1.28″)
Weight 0.29kg (0.64lb)

Accessories

  • AC/DC Adapter (12V)
  • Main cable
  • User Manual
  • USB Cable

Downloads

MaxiFlash Elite User Manual – V1.00.pdf
