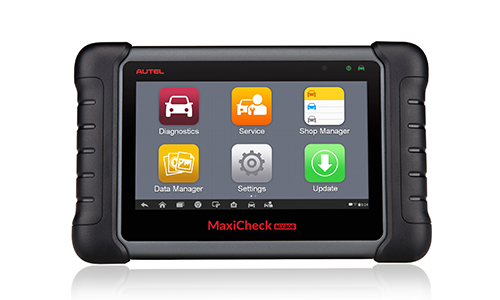

When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024×600 quality.
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.4 |
| Processor | Cortex-A9 processor (1.5 GHz) |
| Memory | 32GB |
| Display | 7-inch LCD capacitive touch screen with 1024×600 resolution |
| Connectivity | Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB) |
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input/Output | Input: N/A • Output: buzzer |
| Power and Battery | 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | -10 to 60°C(14 to 140°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight | 788 g (2.42 lb.) |
| Supported Automotive Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
| MaxiDAS DS808 | MaxiDAS DS808TS | MX808 | MX808TS | |
|---|---|---|---|---|
| Read Codes | √ | √ | √ | √ |
| Erase Codes | √ | √ | √ | √ |
| Live Data | √ | √ | √ | √ |
| ECU Information | √ | √ | √ | √ |
| Active Test | √ | √ | — | √ |
| Service Functions | √ | √ | — | √ |
| Complete OBD Diagnositcs | √ | √ | √ | √ |
| Oil Service Reset | √ | √ | √ | √ |
| Parking Brake Pad Relearn After Replacement | √ | √ | √ | √ |
| Steering Angle Sensor Relearn | √ | √ | √ | √ |
| Battery Registration and Reset | √ | √ | √ | √ |
| Diesel Particulate Filter Regeneration | √ | √ | √ | √ |
| Tire Pressure Monitoring System Monitoring System | Basic | Complete | Basic | Complete |
| Immobilizer Function | √ | √ | √ | √ |
| Advanced TPMS Diagnostics for Complete TPMS | — | √ | — | √ |
| Activate 98% of All Known TPMS Sensors | — | √ | — | √ |
| Program AUTEL MX-Sensors | — | √ | — | √ |
| Comprehensive OBD relearn coverage | — | √ | — | √ |
| On-screen Relearn Procedure | — | √ | — | √ |
| Processor | Quad-core 1.6GHz | Quad-core 1.6GHz | Quad-core 1.6GHz | Quad-core 1.6GHz |
| OS | Android 4.4.4 | Android 4.4.4 | Android 4.4.4 | Android 4.4.4 |
| Memory | 1G + 32G | 1G + 32G | 1G + 32G | 1G + 32G |
| Display | 7″ LCD | 7″ LCD | 7″ LCD | 7″ LCD |
| Battery | 5000 mAh | 5000 mAh | 5000 mAh | 5000 mAh |
| Internet Updatable | WiFi | WiFi | WiFi | WiFi |
| Multilingual Support | √ | √ | √ | √ |
| Historical Test Records | √ | √ | √ | √ |
| Save and Playback Data | √ | √ | √ | √ |
| Vehicle communication method | Wired | Wireless (bluetooth) | Wired | Wireless (bluetooth) |
